Take an audit trail through cards

It is possible to take an event log of doors with keycards. you will need staff keycard for this operation.

1st step: Create a readout card

• Open Visionline using your credentials

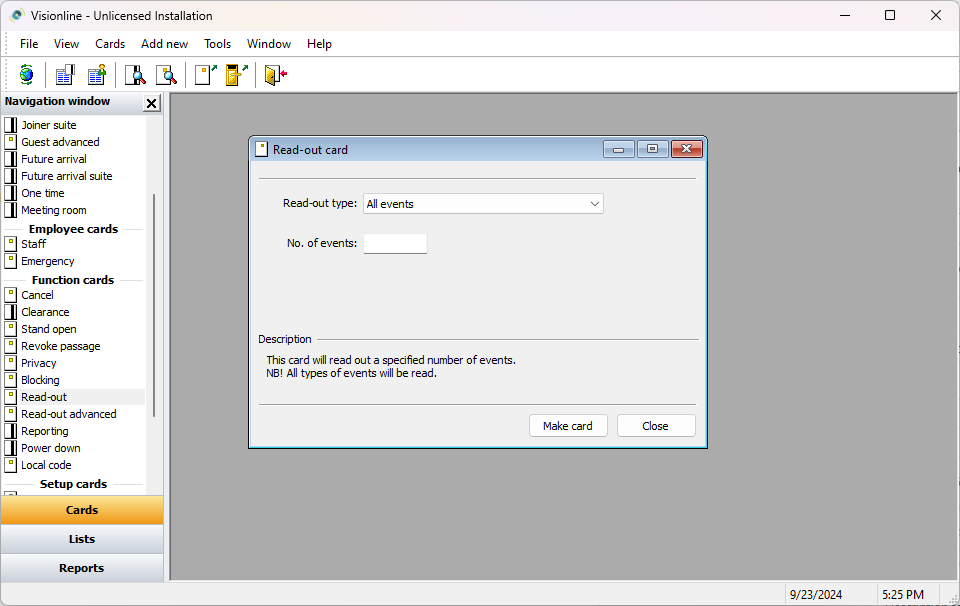

• Go to Cards/Read-out
• In read-out type, choose  "All events" and determine how many event you need. e.g., if you choose 100, the cards will take the last 100 events from the lock.

OR

• In read-out type, choose "Events by registration number"
• In Reg.No., click the three dots

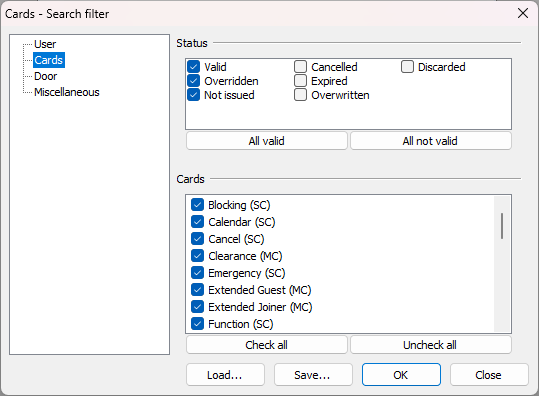

• Filter the data, then choose which card should be tracked
• Choose debut and end date

• Click on make card and present a card to the encoder.


2nd step: Present the card to LCU

When you present the card to the lock, LCU will start blinking.

Do not remove the card till operation is finished. A green light indicates that all events you need are fetched.

You can present the card to several door as long as number of events is not yet reached.

3rd step: Go back to Visionline

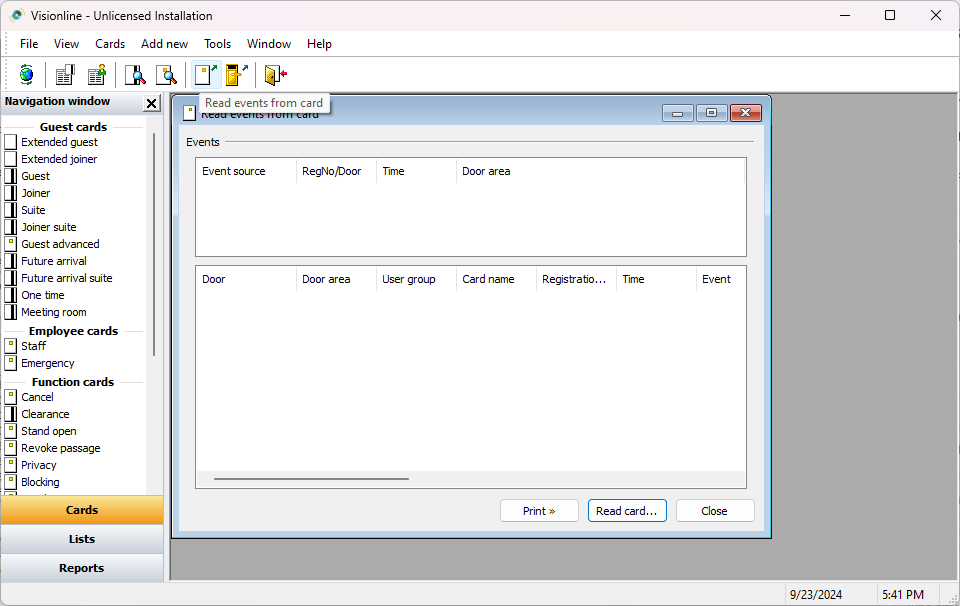

Present the card to encoder and click on read events from card

Click on Read card...

Your events are shown in the main panel.
